GmProcess Class Reference

Base interface class for Process type plugins. More...

#include <gmProcess.h>

Inheritance diagram for GmProcess:

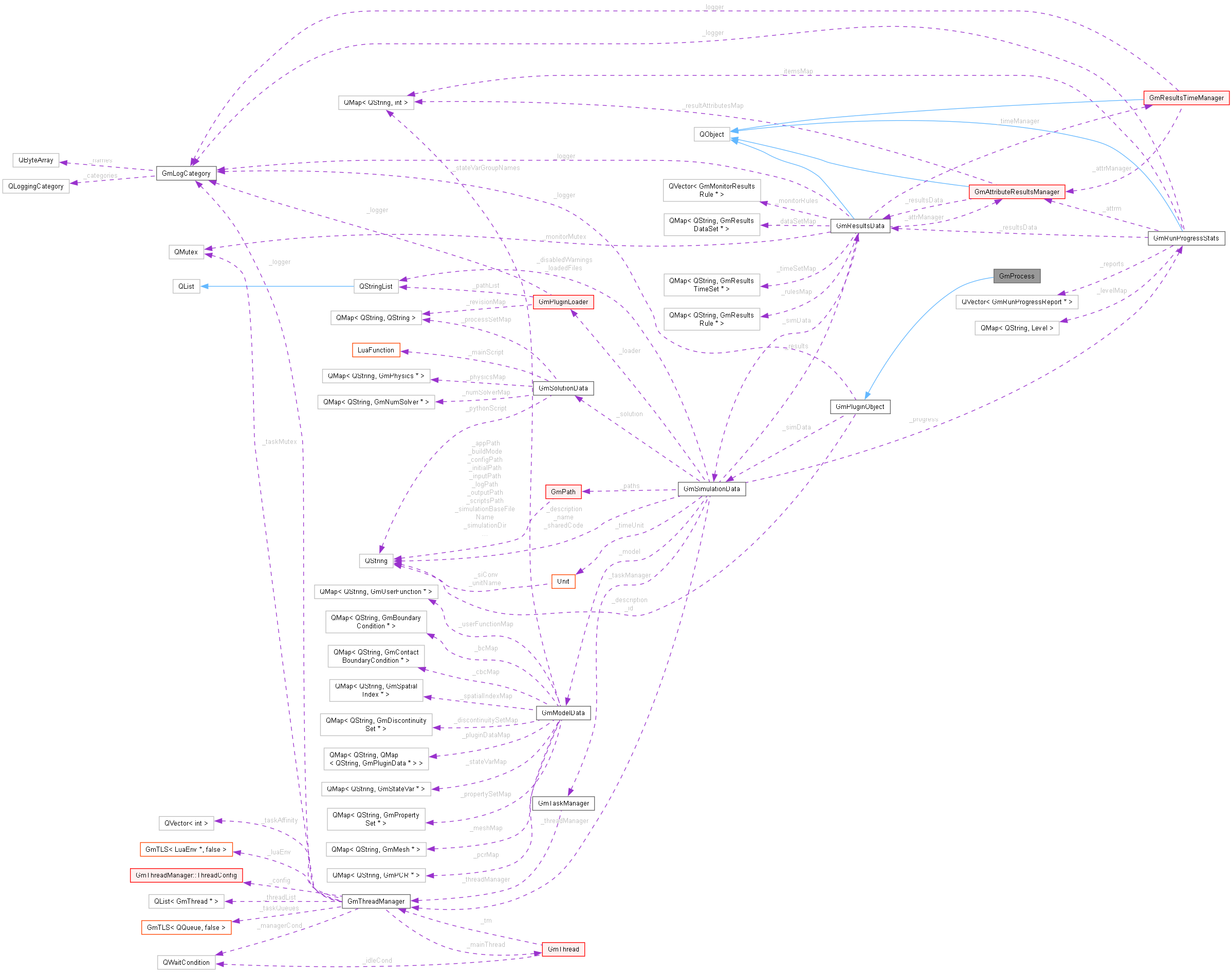

Collaboration diagram for GmProcess:

Public Member Functions
	GmProcess (GmSimulationData *simulation, QString id, QString description, const GmLogCategory &logger)
	Constructor.
virtual	~GmProcess ()
	Virtual destructor.
virtual const char *	pluginCategory () const
	Returns the plugin category.
virtual bool	loadPrivateData (LuaTable &table)
	In general, processes dont have any configuration data on the simulation file.
virtual void	printParameters (const GmLogCategory &logger)
	Asks the process to print all of its parameters using the provided logger.
virtual void	loadFunctions (LuaTable &table)=0
	Virtual function that should be implemented by plugins to fill table with the set of functions exported by this process object.
virtual QStringList	functionList () const =0
	Returns the set of function names exported by this process object.
int	createProgressStatsItem (GmRunProgressStats *ps, const char *name)
	Creates the method process item. If needed, also creates the process item. Returns the new item id or -2 on error (uses -2 to report an error, instead of -1, to simplify the logic used to control creation and also to avoid multiple retries on further calls to a process method)
Public Member Functions inherited from GmPluginObject
	GmPluginObject (GmSimulationData *simulation, QString id, QString description, const GmLogCategory &logger)
	Constructor.
virtual	~GmPluginObject ()
	Destructor.
QString	id () const
	Returns the object id.
QString	description () const
	Returns the object description.
QString	pluginTypeName () const
	Returns the hierarchical type name for the plugin object type. See also pluginName() and pluginType().
virtual const char *	pluginName () const =0
	Returns a string identifying the plugin which implements this object. Should return the SAME string as the one read from the plugin information file in the pluginName field.
virtual const char *	pluginType () const =0
	Returns the string identifying the plugin object type. Should return the SAME string as the one read from the plugin information file in the objectTypes table.

Protected Member Functions
template<class T >
void	registerFunctions (LuaTable &table, typename GmProcessMethodRedirector< T >::MethodRegistry *methods, bool noProgressStats=false)
	Helper function to make it very easy to implement loadFunctions()
template<class T >
QStringList	buildFunctionList (typename GmProcessMethodRedirector< T >::MethodRegistry *methods) const
	Helper function to make it very easy to implement functionList() and keep it consistent with loadFunctions().
Protected Member Functions inherited from GmPluginObject
virtual const GmLogCategory &	logger () const
	Returns the internal logger used by the plugin to emmit messages.
GmSimulationData *	simulationData () const
	Returns a reference to the simulation data object keeping global simulation information.

Private Attributes
int	_processProgressItem
	The root progress stats item related to this process.

Detailed Description

Base interface class for Process type plugins.

Constructor & Destructor Documentation

GmProcess()

GmProcess::GmProcess	(	GmSimulationData *	simulation,
		QString	id,
		QString	description,
		const GmLogCategory &	logger )

Constructor.

Parameters

simulation	Reference to the simulation object.
id	Process id.
description	Process description.
logger	Plugin logger object used to emmit messages

Member Function Documentation

buildFunctionList()

template<class T >

QStringList GmProcess::buildFunctionList ( typename GmProcessMethodRedirector< T >::MethodRegistry * methods ) const

inlineprotected

Helper function to make it very easy to implement functionList() and keep it consistent with loadFunctions().

In functionList(), just call this function passing as parameter the same table passed to registerFunctions() by loadFunctions().

loadPrivateData()

bool GmProcess::loadPrivateData ( LuaTable & table )

virtual

In general, processes dont have any configuration data on the simulation file.

Implements GmPluginObject.

pluginCategory()

virtual const char * GmProcess::pluginCategory ( ) const

inlinevirtual

Returns the plugin category.

Implements GmPluginObject.

printParameters()

void GmProcess::printParameters ( const GmLogCategory & logger )

virtual

Asks the process to print all of its parameters using the provided logger.

The default implementation logs the data, as seen through the access interface;

Implements GmPluginObject.

registerFunctions()

template<class T >

void GmProcess::registerFunctions ( LuaTable & table, typename GmProcessMethodRedirector< T >::MethodRegistry * methods, bool noProgressStats = false )

inlineprotected

Helper function to make it very easy to implement loadFunctions()

In loadFuntions(), just define a static table with the name <--> method mapping and call registerFunctions(). See GmpIoProcess::loadFunctions() for an example. Remember that the table must be NULL terminated and static. If noProgressStats is set to true, time statistics will be skipped.

---

The documentation for this class was generated from the following files:

• inc/solution/gmProcess.h
• src/solution/gmProcess.cpp
